Elasco UG7140 Cable Protector, 7 Channels

Elasco UG7140 Ultra Guard Cable Protector, Button Down Lid, 7 Channels

UG7140 Technical Drawing

$279.30

Proudly Made in the USA Proudly Made in the USA

Estimated Shipping Time:  In Stock - Ships Within 24 Hours

Please email info@cableprotectorworks.com for quotes on bulk corporate and government orders or freight quotes on large items.

Elasco UG7140 Cable Protector, 7 Channels Cable Protector Works - Elasco Wheel Chocks, Cable Protectors and Cable Ramps Cable Protectors

Lifetime Warranty

Elasco UG7140 Cable Protector, 7 Channels Cable Protector Works - Elasco Wheel Chocks, Cable Protectors and Cable Ramps Cable Protectors

Very Fast Shipping

Elasco UG7140 Cable Protector, 7 Channels Cable Protector Works - Elasco Wheel Chocks, Cable Protectors and Cable Ramps Cable Protectors

Made in the USA

View Technical Drawing

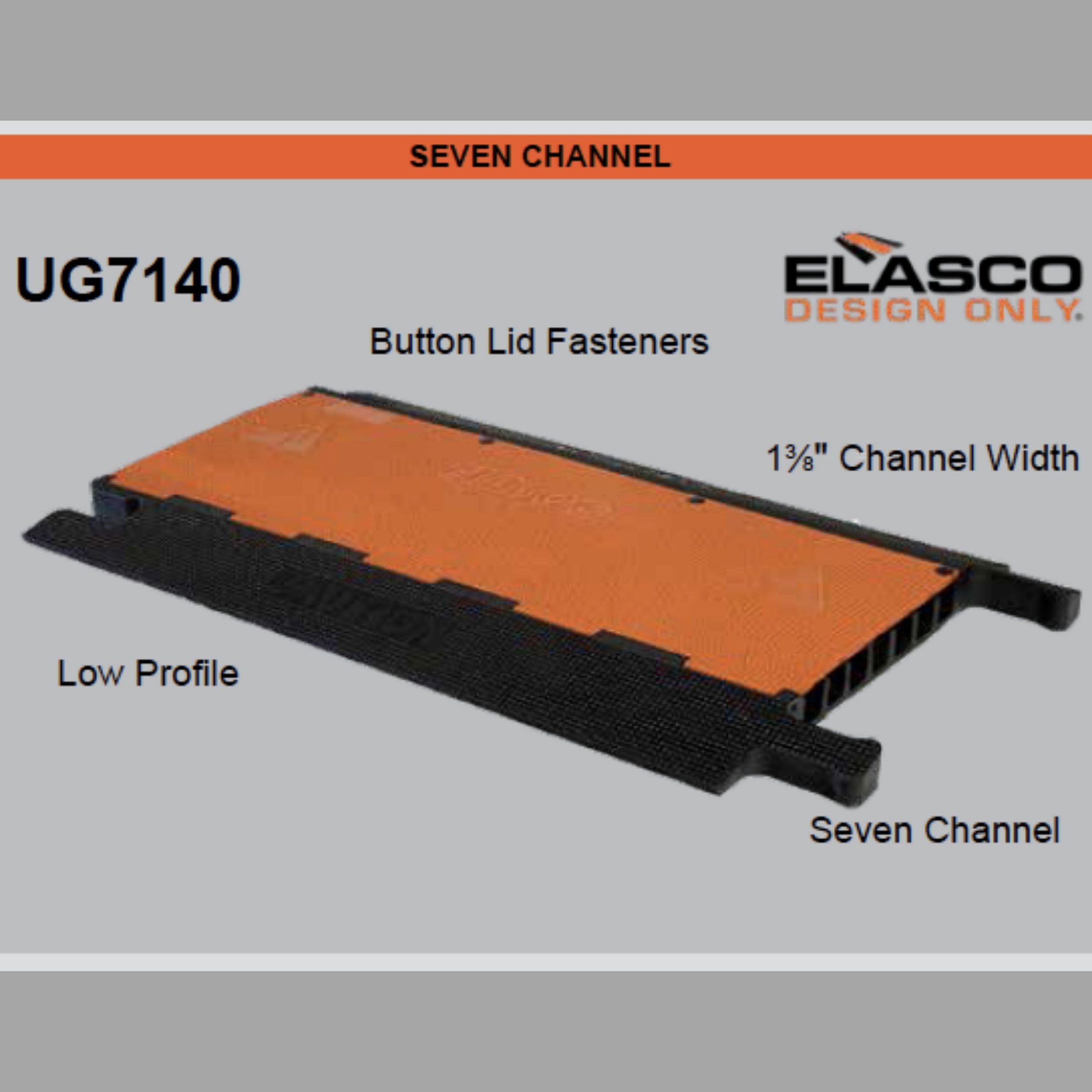

The tough and durable UG7140 Seven-Channel Ultra Guard from Elasco Products is designed to protect cables and wires from light to heavy-duty traffic, while ensuring that oncoming traffic travels in a safe manner on construction sites, in manufacturing plants, at venues & events, and more. It is made from solid-cast polyurethane, which offers the greatest strength & load-bearing characteristics in its class, a superior tolerance to greases and chemicals, and generates less noise than metal.

The black base and orange lid make this product easily noticeable to drivers and pedestrians, while the slip-resistant surface pattern helps minimize slips and falls. Furthermore, the interlocking design allows for linking multiple Ultra Guards with one another for short or long runs. Built to withstand temperatures ranging from blizzards to heat waves, the UG7140 Ultra Guard features button lid-fasteners to provide additional level of cable security and lid closure, strong connection points for quick and safe installation, built-in handles for easy transportation, and is made in the USA.

Lightweight 7-channel cable and wire guard with interlocking design for light- to heavy-duty protection Made from solid-cast polyurethane material – light, not biodegradable, superior tolerance to greases and chemical substances, offers the greatest strength and load-bearing characteristics in its class, generates less noise that metal Slip-resistant surface pattern designed to minimize slips and falls Standard black base and orange lid make product easily noticeable to drivers and pedestrians Button lid-fasteners provide additional level of cable security and lid closure Strong connection points with easy and safe installation Reinforced fiberglass rods resist corrosion and rust Recessed handles underneath the base allow for easy transportation Easily cleaned and resistant to the fiercest elements Fully compliant with NEC, OSHA, REACH, RoHS Made in the USA.

View Technical Drawing

UG7140 Technical Drawing

Product Enquiry

Weight 27 lbs
Dimensions 36 × 24 × 1.75 in
Cable Protector Color

Orange Black

Channel Height

1.25 inches

Channel Width

1.38 inches

Overall Height

1.75 inches

Overall Length

36 inches

Load Capacity

18,000 lbs per tire

Number of Channels

7

Weight

30 pounds

Overall Width

24 inches

Brand

Elasco Products

Please email info@cableprotectorworks.com for quotes on bulk corporate and government orders or freight quotes on large items.

CABLE PROTECTORS, HOSE BRIDGES, CABLE RAMPS, ADA RAMPS, WHEEL CHOCKS, ALUMINUM EXIT SIGNS

CableProtectorWorks.com is the industry source for high quality urethane products including:

We are authorized distributors of Elasco Products that are made in the USA.

Elasco Products Cable Protectors can be grouped into following product lines.

  • Light Duty - Lite Guard Series - Elasco Lite Guard cable protectors come in size of 1 3/8" or smaller. They are smaller in size and weight but still designed for huge load bearing strength. These cable protectors are commonly used for vehicle or pedestrian traffic. One of the unique features of the Lite Guard and Mighty Guard Cable Protectors is that the lid seals into the base of the product, this prevents the lid from curling up and creating a trip hazard.
  • Heavy Duty - Ultra Guard Series and Mighty Guard Series - Elasco Heavy Duty Mighty Guard Cable Protectors come in sizes of 2" or greater. The Heavy Duty Ultra Guard Cable Protectors come in five and seven channels and can withstand up to 20,000 lbs of pressure per tire. They are also the only cable protectors in the industry that come with the push button lid that when closed remains securely shut. Both Mighty Guard and Ultra Guard Cable Protectors are now also available in ADA compliant ramps.
  • DropOvers and Hose Bridges - Elasco Dropovers come in four sizes with standard colors of either red or black. The channel width varies from 1.5 inches to 7.5 inches to handle different quantities of cables.
  • Extreme Duty - Xtreme Guard Series - Elasco Xtreme Duty Cable Protectors designed to withstand load bearing of between 300 - 500 tons for large mining trucks, and heavy construction vehicles. These items are commonly used as Fracking Ramps, Oil Field Ramps, Crossover Ramps and Industrial Ramps.


Whether your application is in construction, demolition, mining, audio-visual and events or any other, we carry a complete range of Cable Protectors, Cable Ramps, Cable Raceways for all cable thicknesses. Our cable protectors range from a single channel in a drop over configuration to 7 channels of varying channel widths. All cable protectors feature an interlocking system to create a cable path of any length. Most cable protectors are 36 inches in length and can be joined to form the length you need.

Cable Protectors are known by many names such as Fracking Ramps, Crossover Ramps, Heavy Duty Ramps, Industrial Ramps, Industrial Hose Bridges, Oil Field Hose Ramps, Pipe Crossovers and more. We probably have what you want but maybe use a different name. Please email us on sales@cableprotectorworks.com if you can't find what you are looking for.

Our sales team is on hand to learn about your project and recommend the perfect products to get the job done. Our warehouse is stocked and all items are generally ready to ship the same day. Contact us at sales@cableprotectorworks.com for assistance.

How to Choose a Cable Ramp

Advantages of Polyurethane Cable Protectors

Polyurethane has overtaken rubber in popularity for commercial cable ramps, and the reasons speak for themselves:

  • Polyurethane weighs 75% less than rubber
  • It holds up really well under use and abuse
  • It has a higher load bearing capacity than rubber
  • It has great oil, chemical, fuel and lubricant resistance
  • It is UV stable so it can be used indoors or outside
  • It has a broad range of hardness, which means it can be used in a greater variety of applications than rubber
  • Metal solutions weigh more, are difficult to handle, create noise and are not corrosion resistant.
  • Polyurethane will outperform plastic, rubber and metal every time!

How to Choose an EXIT Sign

  • What viewing distance is required? 50ft, 75ft, or 100ft?
  • What color is required? Choose from Silver, Red, Black, Green or Gray
  • Does the sign need to be Single or Double Sided?
  • Will the sign be mounted flat on a wall, flag / pole mount or ceiling mounted?
  • What color frame is required? Silver, Black, White, Gray?
  • How many signs do you need?
  • Choose Aluminum signs over cheap plastic. Our signs will last forever.
  • Choose a Made in the USA brand like Elasco Products

Advantages of Non-Electric Glow EXIT Signs

Aluminum Non-Electric Photoluminescent EXIT Signs are the gold standard.

  • Zero maintenance
  • Lowest installation cost
  • Lowest overall cost with no wiring or power required
  • Very long lifespan, expected over 25 years.
  • Zero disposal fees
  • No running costs of electricity
  • Failsafe in an emergency

How to Choose a Wheel Chock

  • How large are the wheels? What is the diameter?
  • Do you need a specific weight rating or load capacity?
  • What type of wheel do you need to chock? Truck/Vehicle or Aircraft?
  • How many chocks do you need? How many wheels are there?
  • Do you need hi-visibility colors?
  • Material must be polyurethane, Never Plastic or rubber
  • Choose a Made in the USA brand like Elasco Products

Advantages of Urethane Wheel Chocks

Urethane Wheel Chocks outperform Plastic and Rubber

  • Physically Stronger - higher load capability
  • Withstands long periods of sunshine and the elements
  • No odor like rubber and plastic
  • Life span exceeds 25 years
  • High Visibility Colors of Yellow and Orange increase safety
  • Cost effective vs. metal chocks

Why Do We Cover Cords and Cables?

By covering your cables, you are not only protecting your valuable power, telephone, ethernet and other lines from getting damaged when equipment drives over them, you are also ensuring that employees, visitors and pedestrians won't be as likely to injure themselves. Each cable cover system we sell has a non-slip textured design to improve footing and traction, and most come in high-visibility yellow or orange. Our cable ramps are easy to set up and maintain, while our discount prices are more than worth it to have fewer injuries and potential liability claims.
